HDMI Splitters allow for the simultaneous display of images and audio from one HDMI source to multiple HDMI LCDs or TVs. CAT5e/CAT6 HDMI Splitter Extenders are a cost effective solution compared to standard HDMI cables for longer distances. They are available in 2 port, 4 port and 8 port units.

Split Full HDMI Signals

These devices support Full HD 1920×1080 (1080p) resolution, but that can vary depending upon the device and distance. HDMI Distribution Amplifiers can be cascaded together to display the same high quality image on up to 64 HDMI LCDs or TVs and, because HDMI and DVI are backwards compatible, users can use HDMI to DVI or DVI to HDMI converters or cables for certain applications.

Because of their versatility, HDMI splitter devices are frequently used in homes, offices, educational institutes, theaters, restaurants, military, and government facilities that need to connect audio/video HDMI equipment. They are optimal for use in sports bars, home theaters, and video gaming setups for media distribution as well as and commercial advertising.

What HDMI Splitter is best for my situation?

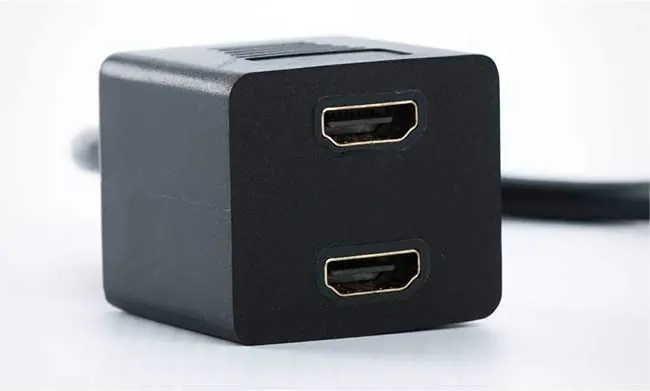

HDMI Splitter Image

Users needing to connect a single audio/video device to two screens less than 50ft, should use a product like the 2 Port 3D HDMI Splitter (HDMI-2P-3D), which is capable of supporting a maximum 1920×1080 (1080p) resolution and has a video bandwidth of single link 225 Mhz (6.75Gbps).

Integrators wishing to connect a single video device to four sources over longer distances (1080p up to 100ft, 720p up to 180ft) over Cat5e/Cat6/Cat7, should use a product like the 4 Port HDMI Extender over CAT5e/6 UTP (HDMI-CATSP-4), which is capable of a maximum WUXGA 1920×1200 resolution at 60Hz and has a video amplified bandwidth up to 1.65 Gbps per channel. This device includes four receivers and has full EDID support.

Want to connect many sources to multiple outputs? Then use an 8×8 HDMI Matrix Switch 3D with Digital Audio, Infra Red Remote, RS232 and TCP/IP Control (HD-MTX-88-A). The 8×8 HDMI Matrix connects up to 8 sources and 8 outputs with 8 EDID modes. On any Output, you can take advantage of the SPDIF (coaxial digital) audio output which allows audio to connect directly to an audio receiver. The S/PDIF can carry two channels of uncompressed lossless PCM audio or compressed 5.1/7.1 surround sound such as Dolby Digital Plus or DTS-HD High Resolution Audio. It has a video bandwidth of 340 MHz and a total of 6.75Gbps. This unit is compatible with all HDMI source devices, PC monitors, Plasma HD display, HDTV and audio receivers/amplifiers. It supports a wide range of HD resolutions from PC XGA to WUXGA 1920×1200 and HDTV/DTV resolutions 480i/480p, 576i/576p, 720p, 1080i & 1080p. The 8×8 HDMI Matrix is optimal for use in restaurants and sports bars playing multiple sources on multiple screens.
